2001 SIEMENS Multix TOP /EQR001
Description
Tube and 3D stand exchanged in 2012
Ceiling-mounted solution for optimum table access and adjustable table height
MULTIX radiographic systems feature
outstanding image quality with minimal
dose and provide a first-rate basis for
diagnoses.
They make repeat exposures a thing
of the past and get the images to the
physician fast.
TECHNICAL SPECIFICATION
| System type :
Manufacturer : Model : Condition : Year Of Manufacture : Power Supply : |
RAD room
Siemens Multix TOP Used 2001 3 х 380 V/50 Hz |

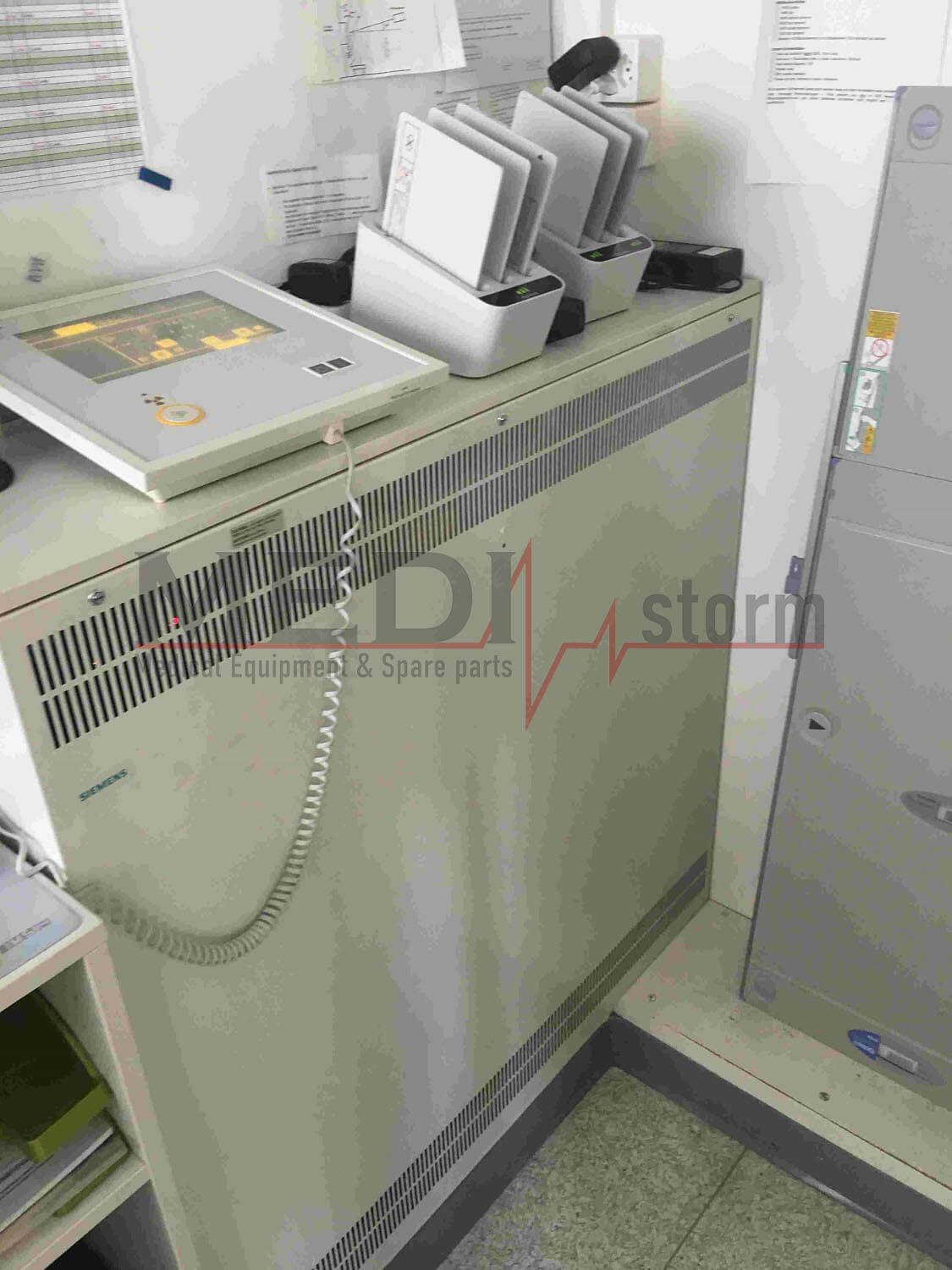

| Generator Type :
Model : Max output Power : Max output Voltage : Max output Current : Output Voltage Range : Output Current Range: Output mAs Range: Exposure Time Range: |
High Frequency
Polydoros LX 50 Lite 50 kW 150 kV 500 mA 40 to 150 kV 10 to 500 mА 0,5 to 800 mAs 1 ms to 5s |
| X-ray tube Type:
Model : Max output Voltage : Max output Current : Small Focal spot : Big Focal spot : |
Rotating Anode
Optilix 150/40/80HC-100/ 2012 150 kV 500 mA 0.6 mm 1,0 mm |

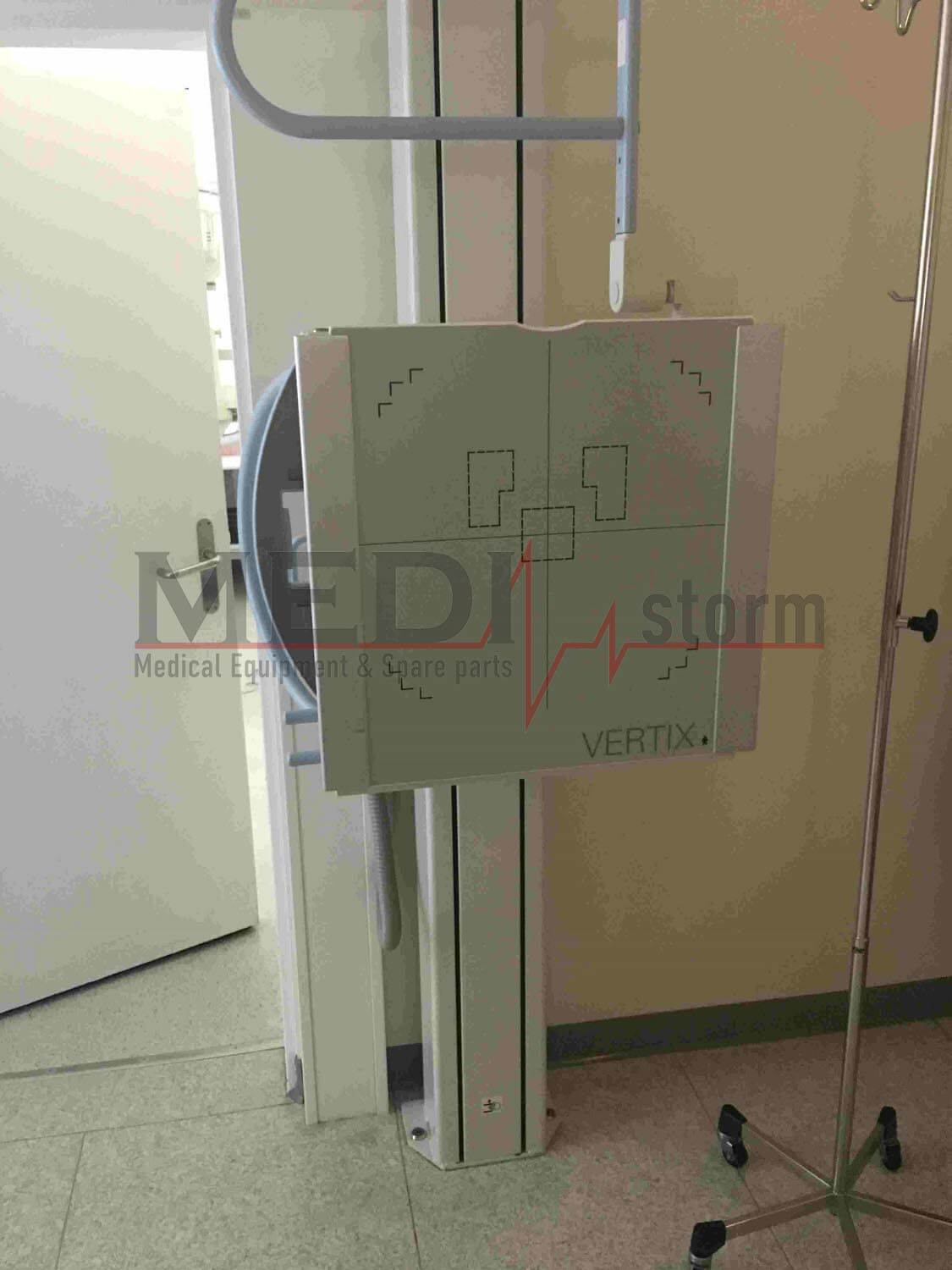

| Vertical Stand :
Table : Ceiling System : |
Vertix TOP
Multix TOP 3D-TOP overhead Tube support |
| Automatic Exposure Control : | Iontomat PL 3 field / ionization chambers |
| DAP meter : | NO |
| Remote Control : | Desk PL LX touchscreen |
